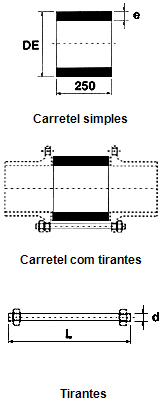

Carretel
DN |
Dimensões e Massas |
||||||||||||||
Carretel a |
Tirantes |
||||||||||||||
PN 10 |
PN 16 |
PN 25 |
|||||||||||||
e |
DE |
Massas |
Quant. |
L |
d |
Massas |
Quant. |
L |
d |
Massas |
Quant. |
L |
d |
Massas |
|
mm |
mm |
kg |
mm |
mm |
kg |
mm |
mm |
kg |
mm |
mm |
kg |
||||
80 |
26,0 |
130,0 |
15,3 |
8 |
360 |
16 |
5,0 |
8 |
360 |
16 |
5,0 |
8 |
360 |
16 |
5,0 |
100 |
26,5 |
153,0 |
19,0 |
8 |
360 |
16 |
5,0 |
8 |
360 |
16 |
5,0 |
8 |
370 |
20 |
7,0 |
150 |
29,5 |
209,0 |
31 |
8 |
370 |
20 |
7,0 |
8 |
370 |
20 |
7,0 |
8 |
380 |
24 |
9,6 |
200 |
32,0 |
264,0 |
41,1 |
8 |
370 |
20 |
7,0 |
12 |
370 |
20 |
10,6 |
12 |
380 |
24 |
14,5 |
250 |
34,5 |
319,0 |
55,0 |
12 |
370 |
20 |
10,6 |
12 |
380 |
24 |
14,4 |
12 |
430 |
27 |
20,4 |
300 |
34,5 |
369,0 |
67,5 |
12 |
370 |
20 |
10,6 |
12 |
380 |
24 |
14,4 |
16 |
430 |
27 |
27,2 |
350 |
38,5 |
Consultar |
|||||||||||||
400 |
38,5 |
477,0 |
92,3 |
16 |
380 |
24 |
19,2 |
16 |
430 |
27 |
27,2 |
16 |
460 |
33 |
44,8 |
450 |
38,5 |
Consultar |
|||||||||||||
500 |
41,0 |
582,0 |
122 |
20 |
380 |
24 |
24,0 |
20 |
450 |
30 |
44,6 |
20 |
460 |
33 |
56,0 |
Revestimento: internamente e externamente, pintura betuminosa.
