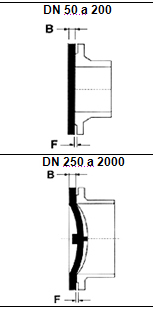

Flange Cego
DN |
Dimenssões e Massas |
|||||||||
C |
PN 10 |
PN 16 |
PN 25 |
|||||||
B |
D |
Massas |
B |
D |
Massas |
B |
D |
Massas |
||
50 |
3 |
16,0 |
165 |
2,3 |
16,0 |
165 |
2,3 |
16 |
165 |
2,3 |
80 |
3 |
16,0 |
200 |
3,8 |
16,0 |
200 |
3,8 |
16 |
200 |
3,8 |
100 |
3 |
16,0 |
220 |
4,86 |
16,0 |
220 |
4,86 |
16 |
235 |
4,8 |
150 |
3 |
16,0 |
285 |
9 |
16,0 |
285 |
9 |
9,00 |
300 |
8,3 |
200 |
3 |
17,0 |
340 |
11,22 |
17 |
340 |
11,22 |
11,22 |
360 |
13,3 |
250 |
3 |
19,0 |
400 |
19 |
19 |
400 |
19 |
19,0 |
425 |
21 |
300 |
4 |
20,5 |
455 |
21 |
20,5 |
455 |
24 |
24,00 |
485 |
30 |
350 |
4 |
20,5 |
505 |
32,2 |
22,5 |
520 |
35,8 |
35,80 |
555 |
43 |
400 |
4 |
20,5 |
565 |
33,2 |
24 |
580 |
44 |
44,00 |
620 |
58 |
450 |
4 |
21,5 |
615 |
57,2 |
26 |
640 |
75,5 |
75,5 |
670 |
87 |
500 |
4 |
22,5 |
670 |
69,5 |
27,5 |
715 |
77 |
77,0 |
730 |
94 |
Revestimento: internamente e externamente, pintura betuminosa.
